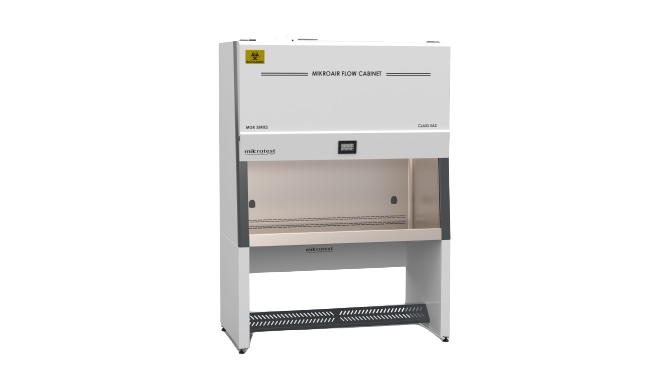

Class II Type A
Class II (laminar flow) biological safety cabinets are designed to minimize the hazards associated with working with agents handled under Biosafety Levels 1, 2, 3, or 4.
Biological Safety Cabinets (BSCs) are designed to protect personnel, products, and the surrounding environment. Our cabinets are designed in accordance with EN 12469 and NSF/ANSI 49 standards to provide reliable performance.
Class II biological safety cabinets, including Types A1, A2, B1, and B2, are partial barrier systems that rely on controlled airflow to provide personnel, environmental, and product protection. Personnel and product protection is achieved through the combination of inward airflow captured by the front grille and downward airflow within the cabinet.
Technical Specifications
| Specification | MGK-90A2 | MGK-120A2 | MGK-150A2 | MGK-180A2 |
|---|---|---|---|---|
| Internal Dimensions (W × D × H), mm | 885 × 650 × 680 | 1190 × 650 × 680 | 1490 × 650 × 680 | 1790 × 650 × 680 |
| External Dimensions (W × D × H), mm | 1045 × 800 × 2300 | 1350 × 800 × 2300 | 1650 × 870 × 2300 | 1960 × 870 × 2300 |
| Support Stand Dimensions (W × D × H), mm | 1045 × 800 × 890 | 1350 × 800 × 890 | 1650 × 870 × 890 | 1960 × 870 × 890 |
| Average Inflow Velocity | ≥ 0.51 m/s | ≥ 0.51 m/s | ≥ 0.51 m/s | ≥ 0.51 m/s |
| Average Downflow Velocity | 0.25–0.40 m/s | 0.25–0.40 m/s | 0.25–0.40 m/s | 0.25–0.40 m/s |
| Downflow / Main Filter | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) |
| Exhaust Filter | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) |
| Air Cleanliness Class | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) |
| Segmented Autoclavable Work Surface | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel |
| Standard Front Sash Opening | 200 mm ± 10 mm | 200 mm ± 10 mm | 200 mm ± 10 mm | 200 mm ± 10 mm |
| Maximum Front Sash / Window Opening | 530 mm ± 10 mm | 530 mm ± 10 mm | 530 mm ± 10 mm | 530 mm ± 10 mm |
| Noise Level – Normal Mode | < 60 dB(A) | < 60 dB(A) | < 60 dB(A) | < 60 dB(A) |
| Noise Level – Economy Mode | < 55 dB(A) | < 55 dB(A) | < 55 dB(A) | < 55 dB(A) |
| Lighting | 850–1150 lux | 850–1150 lux | 850–1150 lux | 850–1150 lux |
| Power Supply / Frequency | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz |
| Power Consumption / Current | 1000 W / 16 A | 1000 W / 16 A | 1000 W / 16 A | 1000 W / 16 A |
| Fan | ebm-papst GreenTech EC | ebm-papst GreenTech EC | ebm-papst GreenTech EC | ebm-papst GreenTech EC |
