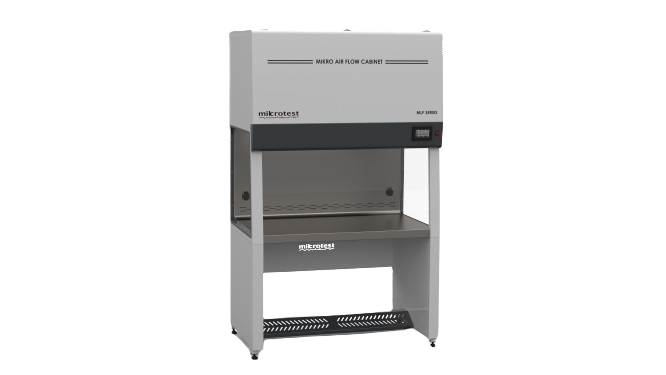

Laminar Flow Cabinet
Laminar flow cabinets are designed to protect the product and working area from airborne contamination. A laminar flow cabinet is an enclosed workstation that creates a clean working environment by passing incoming air through filtration systems that capture airborne particles.
Ambient air enters the cabinet through a pre-filter located in the upper section. The pre-filter helps protect the HEPA filter from coarse dust particles and extends its service life.
After passing through the HEPA filter, the filtered air is supplied to the working area at a controlled velocity. The cabinet airflow is designed to minimize dead zones and maintain uniform air distribution throughout the work area.
A portion of the filtered air leaves the cabinet through the front opening. This continuous, controlled outward airflow helps prevent contaminated room air from entering the working zone. Another portion of the air is recirculated to improve airflow over the work surface and support longer filter service life.
Technical Specifications
| Specification | MLF-90 | MLF-120 | MLF-150 | MLF-180 |
|---|---|---|---|---|
| Internal Dimensions (W × D × H), mm | 931 × 698 × 651 | 1236 × 698 × 651 | 1536 × 698 × 651 | 1836 × 698 × 650 |
| External Dimensions (W × D × H), mm | 995 × 801 × 2155 | 1300 × 801 × 2155 | 1600 × 801 × 2155 | 1900 × 801 × 2155 |
| Support Stand Dimensions (W × D × H), mm | 995 × 801 × 830 | 1300 × 801 × 830 | 1600 × 801 × 830 | 1900 × 801 × 830 |
| Average Inflow Velocity | ≥ 0.51 m/s | ≥ 0.51 m/s | ≥ 0.51 m/s | ≥ 0.51 m/s |
| Average Downflow Velocity | 0.25–0.40 m/s | 0.25–0.40 m/s | 0.25–0.40 m/s | 0.25–0.40 m/s |
| Downflow / Main Filter | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) | H14 HEPA, 99.995% at 0.3 μm (EN 1822) |
| Exhaust Filter | Not used in laminar flow cabinets | Not used in laminar flow cabinets | Not used in laminar flow cabinets | Not used in laminar flow cabinets |
| Pre-Filter | G4 | G4 | G4 | G4 |
| Air Cleanliness Class | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) | ISO Class 5 (ISO 14644-1) / Class 100 (FED 209E) |
| Segmented Autoclavable Work Surface | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel | 316 or 304 Stainless Steel |
| Standard Front Sash Opening | 200 mm ± 10 mm | 200 mm ± 10 mm | 200 mm ± 10 mm | 200 mm ± 10 mm |
| Maximum Front Sash Opening | 530 mm ± 10 mm | 530 mm ± 10 mm | 530 mm ± 10 mm | 530 mm ± 10 mm |
| Noise Level – Normal Mode | < 60 dB(A) | < 60 dB(A) | < 60 dB(A) | < 60 dB(A) |
| Noise Level – Economy Mode | < 55 dB(A) | < 55 dB(A) | < 55 dB(A) | < 55 dB(A) |
| Lighting | 850–1150 lux | 850–1150 lux | 850–1150 lux | 850–1150 lux |
| Power Supply / Frequency | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz |
| Power Consumption / Current | 1000 W / 16 A | 1000 W / 16 A | 1000 W / 16 A | 1000 W / 16 A |
| Fan | ebm-papst GreenTech EC | ebm-papst GreenTech EC | ebm-papst GreenTech EC | ebm-papst GreenTech EC |
